Cisco cBR-8 – Carrier-Grade DOCSIS 3.1 CCAP/CMTS, Configured and Ready to Deploy

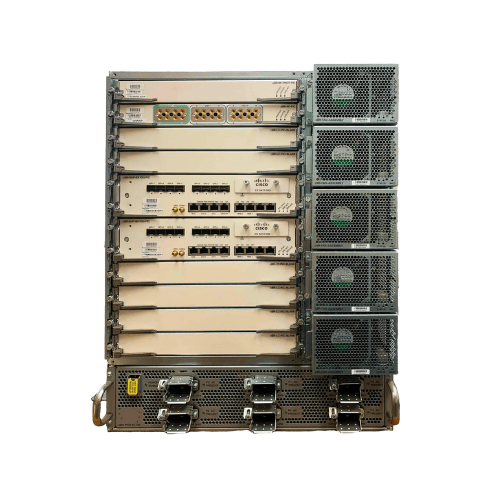

The Cisco cBR-8 Converged Broadband Router is a 13RU Converged Cable Access Platform (CCAP) that acts as a Cable Modem Termination System (CMTS) for hybrid fiber-coaxial networks. This refurbished system is supplied as a complete, redundant control plane with dual CBR-CCAP-SUP-160G supervisors and two DOCSIS 3.1 line cards, tested and ready to deploy in a cable operator headend or hub site. Since Cisco ended sale of cBR-8 hardware in April 2026 with no announced replacement, the secondary market is now the only source for these systems and their components — and support runs to April 2031.
Key Features & Benefits
- Full DOCSIS 3.1 – Terminates DOCSIS 3.0 and DOCSIS 3.1 subscriber traffic, so operators can deliver gigabit service tiers over existing coaxial plant.
- 1+1 Supervisor Redundancy – Two CBR-CCAP-SUP-160G supervisors and dual power feeds deliver carrier-class availability with no single point of failure in the control plane.
- Two Complete D3.1 Line Cards – Two CBR-LC-8D31-16U31 cards, each with two downstream and one upstream D3.1 PHY module (green-label), verified present and complete.
- Ready to Power On – Includes the AC power tray and AC facility power entry module, so the system energizes on arrival — not a box of loose parts.
- Proven Software – Runs Cisco IOS XE (16.10.1g verified), well above the release required for full DOCSIS 3.1 downstream and upstream operation.
- Configurable – Sold as a complete system but fully configurable — add or remove line cards, supervisors, RF PICs and modules to match your deployment.
Technical Specifications
| Specification | Details |
|---|---|
| Model / Part Number | CBR-8-CCAP-CHASS (system) |
| Brand | Cisco |
| Product Type | Converged Cable Access Platform (CCAP) / CMTS |
| Form Factor | 13 RU, 10 slots (8 line-card + 2 supervisor) |
| Supervisors | 2x CBR-CCAP-SUP-160G (1+1 redundant), 160 Gbps, 48 GB memory |
| Supervisor PICs | 2x CBR-SUP-8X10G-PIC (8x 10GE backhaul each) |
| Line Cards | 2x CBR-LC-8D31-16U31 (DOCSIS 3.1, 2x DS + 1x US D3.1 module each) |
| RF PICs | 2x CBR-RF-PIC (8 DS + 16 US RF ports each) |
| Power | 6x CBR-AC-PS + CBR-AC-PWR-TRAY + CBR-PEM-AC-6M (3+3 AC redundancy) |
| Cooling | 5x CBR-FAN-ASSEMBLY (full complement) |
| DOCSIS Support | DOCSIS 3.0 and DOCSIS 3.1 (downstream and upstream) |
| Software | Cisco IOS XE (16.10.1g verified; supports full D3.1) |
| Backplane | 1+ Tbps (up to 1.6 Tbps); up to 200 Gbps forwarding |
| Service Groups | Up to 64 in integrated CCAP mode (up to 256 with Remote PHY) |
| Redundancy | 1+1 supervisor, N+1 line-card capable via RF switch |
| Compliance | Designed to meet NEBS Level 3 (GR-63-CORE, GR-1089-CORE) |
| Condition | Refurbished |
Official Datasheet
Download the official Cisco cBR-8 datasheet here: https://www.cisco.com/c/en/us/products/collateral/video/cbr-8-converged-broadband-router/datasheet-c78-733099.html
